Bench & Pedestal Grinding Wheels

General purpose wheels 5” (127mm) – 18” (455mm)






Recommended Specifications:

		Coarse	Medium	Fine.		Very Fine
Metal / Steel		A24Q5V	A36P5V / A46N6V	A60M6V / A80M6V		A100M6V
Tungsten Carbide			GC60J7V	GC80J7V		GC100J7V
HSS & Tool Steel		WA46K	WA60K	WA80K		WA100K
A		Aluminium Oxide for general purpose off-hand sharpening
GC		Silicon Carbide for non-ferrous metals, carbide tools
WA		White Aluminium Oxide for HSS & Tool Steel

Standard Dimensions:

Diameter			Thickness		Bore
Inches		mm	Inches	mm	Inches	mm
5		127	½ | ¾ | 1	12.7 | 19 | 25.4	½ | ⅝ | ¾ | 1 | 1-1/4	12.7 | 15.88 | 19 | 25.4 | 31.75
6		150	½ | ¾ | 1	12.7 | 19 | 25.4	½ | ⅝ | ¾ | 1 | 1-1/4	12.7 | 15.88 | 19 | 25.4 | 31.75
7		177	½ | ¾ | 1	12.7 | 19 | 25.4	½ | ⅝ | ¾ | 1 | 1-1/4	12.7 | 15.88 | 19 | 25.4 | 31.75
8		200	¾ | 1 | 1-1/4	19 | 25.4 | 31.75	½ | ⅝ | ¾ | 1 | 1-1/4	12.7 | 15.88 | 19 | 25.4 | 31.75
10		254	1 | 1-1/4 | 1-1/2	25.4 | 31.75 | 38	¾ | 1 | 1-1/4	19 | 25.4 | 31.75
12		305	1 | 1-1/4 | 1-1/2 | 2	25.4 | 31.75 | 38 | 51	¾ | 1 | 1-1/4	19 | 25.4 | 31.75
14		356	1 | 1-1/2 | 2 | 3	25.4 | 38 | 51 | 76	1 | 1-1/4 | 1-1/2	25.4 | 31.75 | 38.1
16		406	1 | 1-1/2 | 2	25.4 | 38 | 51	1-1/2	38.1
18		455	3	76	1-1/2	38.1

Standard Aluminium Oxide Bench Grinding Wheels



Wheel Size			Wheel Specification & EAN Code						R.P.M.
Inches		mm	A24Q5V	A36P5V	A46N6V	A60M6V	A80M6V	A100M6V
6x3/4x1-1/4		150x19x31.75	053544	053575	053599	053605	053636	053643	4,500
6x1x1-1/4		150x25.4x31.75	053803	053834	053841	053858	053872	053889	4,500
7x3/4x1-1/4		177x19x31.75	054077	054107	054114	054121	054145	054152	3,750
7x1x1-1/4		177x25.4x31.75	054282	054312	054329	054336	054343	054350	3,750
8x3/4x1-1/4		200x19x31.75	054718	054756	054794	054817	054831	054848	3,350
8x1x1-1/4		200x25.4x31.75	055050	055074	055081	055104	055128		3,350
10x1x1-1/4		254x25.4x31.75		055579	055593	055609	055623		2,700
10x1-1/2x1-1/4		254x38.1x31.75		055920	055944	055951	055975		2,700
12x1-1/4x1-1/4		305x31.75x31.75		351152	056453	056460	056477		2,250
12x1-1/2x1-1/4		305x38.1x31.75		056576	380435	380442	056620		2,250
12x2x1-1/4		305x50.8x31.75		056811	056835	056859			2,250
14x2x1-1/4		356x50.8x31.75		057375	380534	057312	057436		1,950

Standard Silicon Carbide Bench Grinding Wheels



Wheel Size			Wheel Specification & EAN Code			R.P.M.
Inches		mm	GC60J7V	GC80J7V	GC100J7V	4,500
6x3/4x1-1/4		150x19x31.75	075041	075072	075096	4,500
6x1x1-1/4		150x25.4x31.75	075331	075379	075393	4,500
7x3/4x1-1/4		177x19x31.75	075829	075843	075850	3,750
7x1x1-1/4		177x25.4x31.75	075959	075973	075997	3,750
8x3/4x1-1/4		200x19x31.75	076475	076499	076529	3,350
8x1x1-1/4		200x25.4x31.75	076680	076727	076765	3,350
10x1x11/4		254x25.4x31.75	077199	077199	077212	2,700

Standard White Aluminium Oxide Bench Grinding Wheels



Wheel Size			Wheel Specification & EAN Code				R.P.M.
Inches		mm	WA46K7V	WA60K7V	WA80K7V	WA100K7V
6x3/4x1-1/4		150x19x31.75	062928	062942	062966	062997	4,500
6x1x1-1/4		150x25.4x31.75	063062	063086	063109		4,500
7x3/4x1-1/4		177x19x31.75	064168	064205	064243	064250	3,750
7x1x1-1/4		177x25.4x31.75	598076	631353	064359	064366	3,750
8x3/4x1-1/4		200x19x31.75	065202	065257	065288	065295	3,350
8x1x1-1/4		200x25.4x31.75	065448	065486	065516	065523	3,350
10x1x1-1/4		254x25.4x31.75	066223	066230	066254	066261	2,700

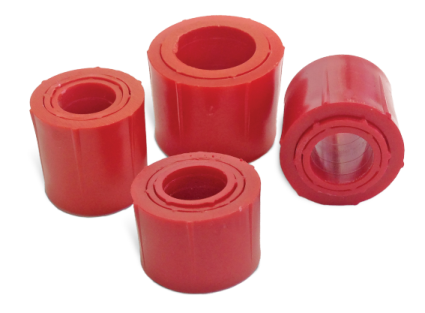

Telescopic Plastic Adaptors



EAN No.	Bore Dimensions			Height
	Inches		mm	Inches	mm
000746				1/2	12.7
000777				3/4	19
000852				1	25.4
				1/2	12.7
000814				3/4	19
000890				1	25.4
				1/2	12.7
				3/4	19
				1	25.4
